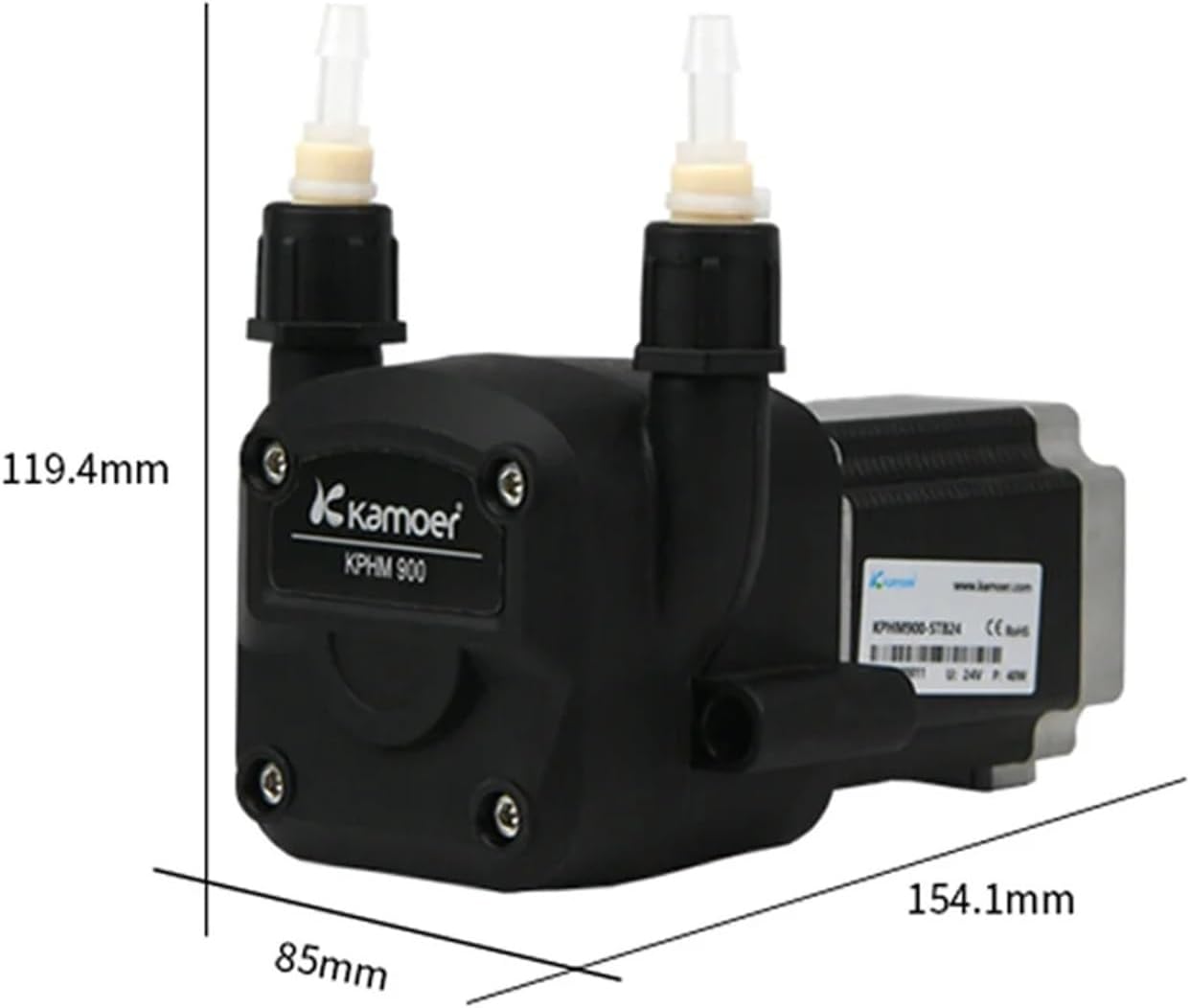

KPHM900 Peristaltic Dosing Pump 900ml/min 24V Stepper Motor Adjustable Flow Self-priming Pump with High Flow B24 6.4x11.4(Kphm900-hab24)

Water PumpsKPHM900 Peristaltic Dosing Pump 900ml/minStepper Motor Water PumpKPHM series peristaltic pump, the design makes the pump tube is well fixed and prevents the pump tube from moving during operation. It is also a low-cost high flow peristaltic pump with high precision stepper motor.<;80%,Pump head material: Nylon.Pump tube material: Pharmed BPT.Very good resistance to general chemicals, as well as excellent resistance to acids, alkalis and oxides.No pollution, low pulsation. The gearbox drives the pump tube to work, and the pump tube is not easy to slip.The liquid only touches the pump tube, not the pump body.Application: Experimental Research Experimental Monitoring,Inkjet.Printing,Aquarium,Smart Home, Operation.Basic ParametersKPHM900-Stepper motorFlow ml/min100-900ml/minNoise60dBPower40WControl methodStepper motor driver boardVoltage24VMotor lifetime6000HWeight1146gTubing lifetime1000HOptional tubingBPT B24(24#) ID6.4mmx OD11.4mm300rpm850ml/minOptional accessoriesL plate: 98×65×25mmStraight connectors: 1/4 support ID tubing 6.4mmDriver board: MODBUS-ITU(It can realize built-in and external potentiometer speed regulation, can realize MODBUS RS485 communication and 0-10V analog speed regulation, realize electric and trigger two start and stop modes, the maximum subdivision is 32, and the drive current can be set (0.7A, 1.2A) , 1.7A, 2.2A, 2.7A, 2.9A, 3.2A, 4.0A)Various Applications Design of Pump HeadNot Easy to Cut off the TubingZero-pollutionStepper Motor 6000HStepper motor connectionInstallation holesRun with a Driver BoardLength* Width* Height(Manual measurement, there may be 2-3mm error)Dimension-KPHM900BPT Performance

• Water Pumps
• KPHM900 Peristaltic Dosing Pump 900ml/min 24V Stepper Motor Adjustable Flow Self-priming Pump with High Flow B24 6.4x11.4
